Railway Joggled Fish Plates
1400-1600 INR/Piece
Product Details:
- Color Silver Grey
- Technology Forged
- Weight Approximately 12-15 kg per piece
- Technics Hot Rolled
- Type Joggled Fish Plate
- Material Carbon Steel/Alloy Steel
- Dimensions Standard: 6 Hole (length: 685 mm), or as per drawing/specification
- Click to View more
X
Railway Joggled Fish Plates Price And Quantity
- 100 Piece
- 1400-1600 INR/Piece
Railway Joggled Fish Plates Product Specifications
- CNC/Machined
- Anti-Corrosion Coated
- 170-250 HB
- Hot Rolled
- Forged
- Joggled Fish Plate
- Standard: 6 Hole (length: 685 mm), or as per drawing/specification
- Carbon Steel/Alloy Steel
- Smooth Shiny/Galvanized
- Silver Grey
- Approximately 12-15 kg per piece
Railway Joggled Fish Plates Trade Information
- kolkata
- Cash Advance (CA), Cash in Advance (CID)
- 50 Piece Per Month
- 7 Days
- Yes
- Sample costs shipping and taxes has to be paid by the buyer
- Standard
- All India
- ISO 9001:2015
Product Description
With leading edge technology in place, we offer specially constructed Railway Joggled Fish Plates featuring assured quality. Mechanical and metallurgical properties as specified by the Indian Railways are taken into consideration while making these plates that we offer in numerous designs and finishes. Dimensions of these products are in strict congruence with respective drawings provided by customers and billets used for making the plates are of good quality without lamination, cracks, surface imperfections and rough edges of any kind.
| Material | Alloy Steel |
| Number Of Bolt Holes | 4 |
| Suitable For | 52kg Rails & 60kg Rails |
| Pack Type | Loose |
| Type | Joggled fish plate |

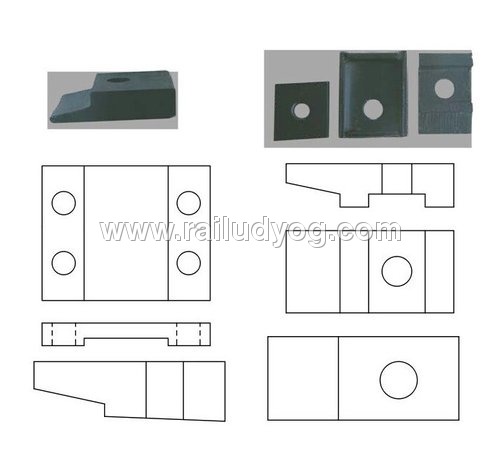

| Joggled Fish Plate for 60 kg | T-5849 | Clamp for J F P for 60 kg | T-4016 |
| Joggled Fish Plate for 52 kg | T-5848 | Clamp for J F P for 52 kg | T-5551 |
Engineered for Optimal Track Connection
Railway Joggled Fish Plates are specially designed to create robust, reliable joints between track ends, reducing misalignment and ensuring safety. Adhering to Indian Railways and customer-specific standards, they guarantee seamless track performance and longevity. Their advanced design includes high tensile strength, ideal elongation, and precise bolt hole placements to ensure an unwavering connection even under intense loads.
Superior Material & Manufacturing
Constructed from premium carbon or alloy steel, these fish plates undergo hot-rolling and forging, followed by CNC machining for exact specifications. The anti-corrosion coatingsmooth, shiny, or galvanizedprovides lasting protection from moisture and harsh environmental conditions, meeting stringent railway tolerances and quality standards. Each plate is rigorously inspected visually and ultrasonically to ensure safety and dependability.
Versatile Application & Easy Handling
Compatible with a range of rail sections, including 52 kg and 60 kg, joggled fish plates cater to both standard installations and custom requirements. Each unit, weighing approximately 12-15 kg, is conveniently bundled with steel straps for straightforward transportation and installation. Designed for long service life, these plates provide a proven, trusted solution for rail infrastructure projects of any size across India and export markets.
FAQs of Railway Joggled Fish Plates:
Q: How are railway joggled fish plates installed on track ends?
A: Railway joggled fish plates are positioned over the adjoining ends of railway rails, aligning the bolt holes with those in the rails. Bolts are then inserted and tightened securely to ensure a firm, safe connection. Installation follows strict inspection protocols, including ultrasonic and visual checks, in accordance with railway safety norms.Q: What makes joggled fish plates suitable for use in diverse rail sections like 52 kg and 60 kg?
A: These fish plates are engineered and manufactured to precise dimensions and tolerances, allowing seamless compatibility with standard rail sections such as 52 kg and 60 kg. Customizable options are also available to meet unique customer specifications or special rail profiles.Q: When should railway joggled fish plates be used instead of regular fish plates?
A: Joggled fish plates are typically required in track sections where alignment correction is needed or where there are slight discrepancies or wear at the rail ends. Their unique joggled design helps maintain the correct geometry and strengthens the joint, ensuring safer railway operations.Q: Where are these joggled fish plates commonly applied?
A: They are widely implemented on mainline and sidetrack railways managed by Indian Railways and other operators, both for new installations and maintenance. Their robust construction and adherence to IRS/T-1/T-10 standards make them suitable for a variety of environments, from high-traffic corridors to sidings.Q: What processes ensure quality and safety of each fish plate before delivery?
A: Each plate undergoes hot rolling, forging, CNC machining, and finishing with anti-corrosion coatings. Additionally, plates are subjected to rigorous ultrasonic and visual inspections according to railway safety regulationsensuring every piece adheres to required mechanical properties, dimensions, and overall quality.Q: How does the special coating on the plates benefit long-term performance?
A: The smooth, shiny or galvanized anti-corrosion coating on each fish plate shields the underlying steel from rust and environmental damage, significantly extending the service life to over 10 years under normal operating conditions and minimizing maintenance requirements.Q: What advantages do joggled fish plates offer compared to traditional joining methods?
A: Joggled fish plates provide superior joint strength, improved track alignment, and enhanced longevity. Their optimized design compensates for slight irregularities at rail ends, reduces stress concentrations, and facilitates straightforward handling and installation, making them a cost-effective solution for railway networks.Tell us about your requirement
